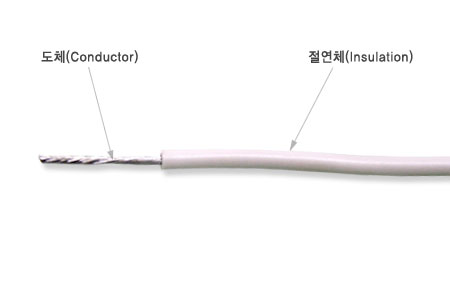

STYLE No. UL Style No.1015 CSA Type TEW RATING UL 600V 105℃    CSA 600V 105℃ Application Internal Wiring of electronic equipment Marking E83147 UL마크  AWM 1015 105C VW-1 SANG NONG CSA TEW 105C 600V FT1 00AWG -F- LF FEATURE 1. Flame retardancy melancholy : VW-1, FT1, -F-Satisfaction       (Flammability : VW-1, FT1, -F-) 2. For both UL and CSA

Type Conductor Insulation Max.Conductor Resistance DC 20˚C Ω/㎞ min.lnsulation Resistance DC 15.6˚C MΩ/㎞ Dielectric Withstanding Voltage AC V/min Current (carrying capacity) Amp Unit Length m AWG Size Number& dia of conductor pcs/mm No.overall Diameter mm Norminal thickness mm Norminal Diameter mm Stranded 26 7/0.16 0.48 0.80 2.10 148.94 15 2000 5.8 610 (2000) 24 11/0.16 0.61 0.80 2.20 93.25 7.6 22 17/0.16 0.76 0.80 2.35 55.00 10.0 20 21/0.18 0.95 0.80 2.60 34.60 13.1 18 34/0.18 1.21 0.80 2.90 21.80 17.2 16 26/0.26 1.55 0.80 3.15 13.70 22.8 14 41/0.26 1.92 0.80 3.45 8.62 30.4 305 (1000) 12 65/0.26 2.42 0.80 4.00 5.43 40.6 10 105/0.26 3.19 0.80 4.70 3.41 55.3 Solid 26 1/0.404 0.40 0.80 2.00 142.79 15 2000 5.8 610 (2000) 24 1/0.511 0.51 0.80 2.10 89.39 7.6 22 1/0.643 0.64 0.80 2.30 54.30 10.0 20 1/0.813 0.81 0.80 2.40 33.90 13.1 18 1/1.024 1.02 0.80 2.60 21.40 17.2 16 1/1.29 1.29 0.80 2.90 13.50 22.8 14 1/1.63 1.63 0.80 3.25 8.45 30.4 305 (1000) 12 1/2.05 2.05 0.80 3.70 5.31 40.6 10 1/2.60 2.6 0.80 4.20 3.34 55.3 TA-SC (Hiwrap) 26 7/0.16 0.48 0.80 2.10 138.88 15 2000 5.8 610 (2000) 24 7/0.203 0.61 0.80 2.20 85.41 7.6 22 7/0.26 0.79 0.80 2.35 54.44 10.0
