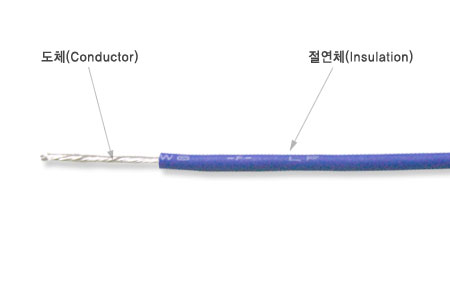

STYLE No. UL Style No.1007 CSA Type TR-64 RATING UL 300V 80℃  CSA 300V 90℃ Application Internal Wiring of electronic equipment Marking E83147 UL마크 AWM 1007 VW-1 SANG NONG CSA TR-64 90C FT1 00AWG -F- LF FEATURE 1. Flame retardancy melancholy : VW-1, FT1, -F-Satisfaction      (Flammability : VW-1, FT1, -F-) 2. For both UL and CSA

Type Conductor Insulation Max.Conductor Resistance DC 20˚C Ω/㎞ min.lnsulation Resistance DC 15.6˚C MΩ/㎞ Dielectric Withstanding Voltage AC V/min Current (carrying capacity) Amp Unit Length m AWG Size Number& dia of conductor pcs/mm No.overall Diameter mm Norminal thickness mm Norminal Diameter mm Stranded 30 7/0.102 0.31 0.40 1.15 376.96 15 2000 2.3 610 (2000) 28 7/0.127 0.38 0.40 1.25 237.38 3.0 26 7/0.160 0.48 0.40 1.35 148.94 4.0 24 11/0.160 0.61 0.40 1.45 93.25 5.3 22 17/0.160 0.76 0.40 1.60 55.00 7.2 20 21/0.180 0.95 0.40 1.80 34.60 9.4 18 34/0.180 1.21 0.40 2.00 21.80 12.5 16 26/0.26 1.55 0.40 2.40 13.70 15.9 Solid 30 1/0.26 0.26 0.40 1.10 361.13 15 2000 2.3 610 (2000) 28 1/0.32 0.32 0.40 1.15 227.39 3.0 26 1/0.404 0.40 0.40 1.20 142.79 4.0 24 1/0.511 0.51 0.40 1.35 89.39 5.3 22 1/0.643 0.64 0.40 1.45 54.30 7.2 20 1/0.813 0.81 0.40 1.65 33.90 9.4 18 1/1.024 1.02 0.40 1.85 21.40 12.5 16 1/1.29 1.29 0.40 2.10 12.50 15.9 TA-SC (Hiwrap) 28 7/0.127 0.38 0.40 1.25 222.33 15 2000 3.0 610 (2000) 26 7/0.160 0.48 0.40 1.35 138.88 4.0 24 7/0.203 0.61 0.40 1.45 85.41 5.3 22 7/0.26 0.79 0.40 1.60 54.44 7.2
