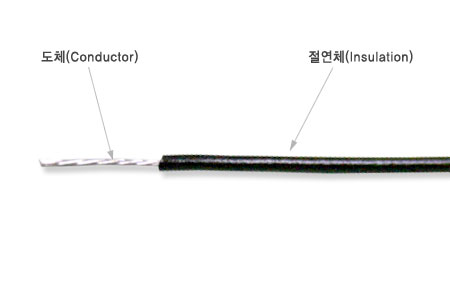

STYLE No. UL STYLE NO.1061 CSA TYPE AWM I A RATING UL 300V 80℃ CSA 300V 80℃ Application Internal Wiring of electronic equipment Marking E83147 UL마크  AWM 1061 80C VW-1 SANG NONG cUL마크 AWM I A 80C 300V FT1 00AWG -F- LF FEATURE 1. Flame retardancy melancholy : VW-1, FT1, -F-Satisfaction       (Flammability : VW-1, FT1, -F-) 2. For both UL and CSA 3. Excellent flexibility and easy wiring

Type Conductor Insulation Max.Conductor Resistance DC 20˚C Ω/㎞ min.lnsulation Resistance DC 15.6˚C MΩ/㎞ Dielectric Withstanding Voltage AC V/min Current (carrying capacity) Amp Unit Length m AWG Size Number& dia of conductor pcs/mm No.overall Diameter mm Norminal thickness mm Norminal Diameter mm Stranded 30 7/0.102 0.31 0.25 0.80 376.96 15 2000 2.0 1220 (4000) 28 7/0.127 0.38 0.25 0.90 237.38 2.6 26 7/0.16 0.48 0.25 1.00 148.94 3.4 24 11/0.16 0.61 0.25 1.10 93.25 4.6 22 17/0.16 0.76 0.25 1.30 55.00 6.1 610 (2000) 20 21/0.18 0.95 0.25 1.50 34.60 8.4 18 34/0.18 1.21 0.25 1.80 21.80 11.3 16 26/0.26 1.52 0.25 2.10 13.70 15.2 Solid 30 1/0.26 0.26 0.25 0.75 361.13 15 2000 2.0 1220 (4000) 28 1/0.32 0.32 0.25 0.85 227.39 2.6 26 1/0.404 0.40 0.25 1.0 142.79 3.4 24 1/0.511 0.51 0.25 1.10 89.39 4.6 22 1/0.643 0.64 0.25 1.20 54.30 6.1 610 (2000) 20 1/0.813 0.81 0.25 1.30 33.90 8.4 18 1/1.02 1.02 0.25 1.55 21.40 11.3 16 1/1.29 1.29 0.25 1.80 13.50 15.2 TA-SC 28 7/0.127 0.38 0.25 0.90 222.33 15 2000 2.6 1220 26 7/0.16 0.48 0.25 1.00 138.88 3.4 24 7/0.203 0.61 0.25 1.10 85.41 4.6 22 7/0.26 0.79 0.25 1.30 54.44 6.1
